High Shear Batch Homogenizer

We provide a wide range of homogenizers

Spec of High shear batch Homogenizer

Product Details:

Product Type: High shear Batch Homogenizer
General Use: Liquid-Powder Homogenizing
Material: SS304, SS316
Type: Fluids Homogenization machine
Speed (rpm): 2900/1450
Power (kw): 1.5-37
Process capacity(L/h): 5-5000L
Lifting device: Optional
Country of orgin: China

Product Description

NEWAFLUIDS high shear batch homogenizer is a type of industrial mixing equipment used to blend, disperse, emulsify, or homogenize materials in various industries such as pharmaceuticals, food and beverage, cosmetics, chemicals, and more.

It is designed to operate at high speeds and generate intense mechanical forces to break down particles and create a uniform mixture. The high shear batch homogenizer typically consists of a rotor (rotating element) and a stator (stationary element) arranged in close proximity. As the rotor rotates at high speeds, it creates a strong mechanical shear force by passing through the narrow gap between the rotor and stator. This shear force leads to the intense turbulence and localized high velocity that helps in achieving thorough mixing and particle size reduction.

Working principle for high shear batch homogenizer

The shearing head adopts a two-way suction structure,which avoids the dead angle and vortex phenomenon caused by the difficulty of sucking the upper material. The high-speed rotating rotor produces strong shearing force, which makes the shearing rate higher and the shearing force stronger. Under the action of the centrifugal force generated by the rotor, the material is thrown into the narrow and precise gap between the stator and rotor from the radial direction. At the same time, the material is fully dispersed, mixed and emulsified by centrifugal extrusion and impact.
Note:When used on a vacuum or pessure vessel, the shearing machine needs to be equipped with a corresponding mechanical sealing device.

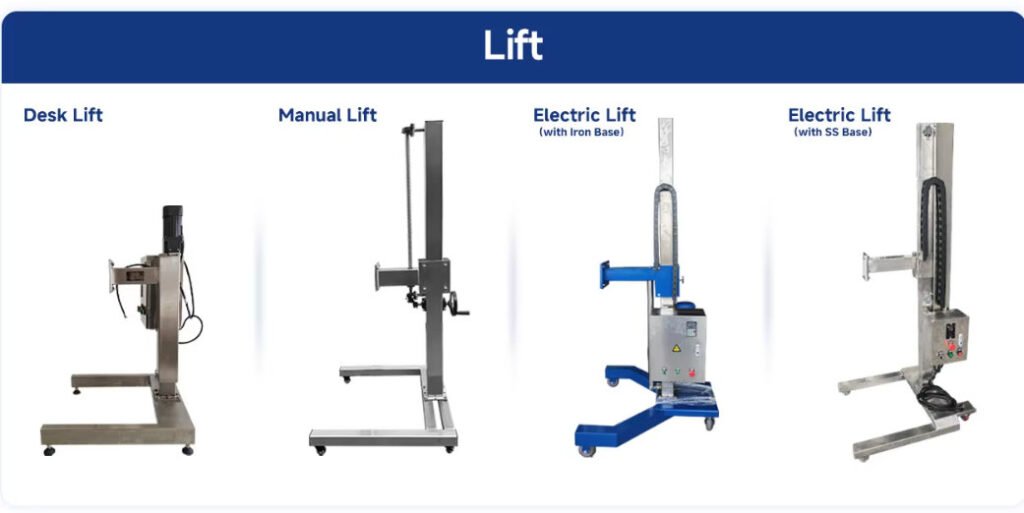

Different lifts for high shear batch homogenizer

How to Choose?

Priority / Scenario	Best Lift Choice	Reason
Heavy-Duty Industrial ( $>15 \text{ kW}$ Motors)	Hydraulic Lift	Unmatched weight capacity and raw lifting power.
Flammable / Explosion-Proof Zones	Pneumatic Lift	Powered completely by air, eliminating electrical spark risks.
Pharma / Sterile Food Production	Electric Screw or Clean Hydraulic	Eliminates fluid leak risks; allows for precise automated height configurations.
R&D Lab / Benchtop Testing	Manual Lift	Low cost, portable, and simple to operate.

Electrical Lift & Manual Lift

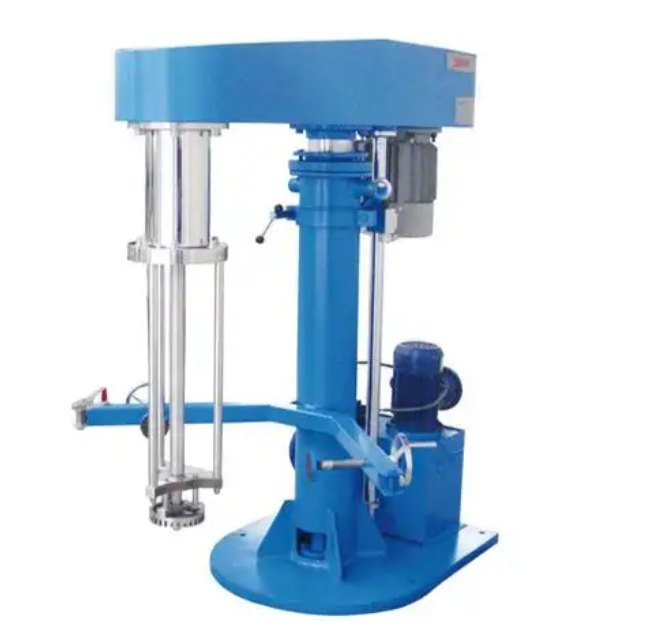

Hydraulic Lift

This is the most robust lifting mechanism used for heavy-duty industrial high shear batch homogenizers. It uses a hydraulic pump and oil cylinders to smoothly stroke the mixer shaft up and down.

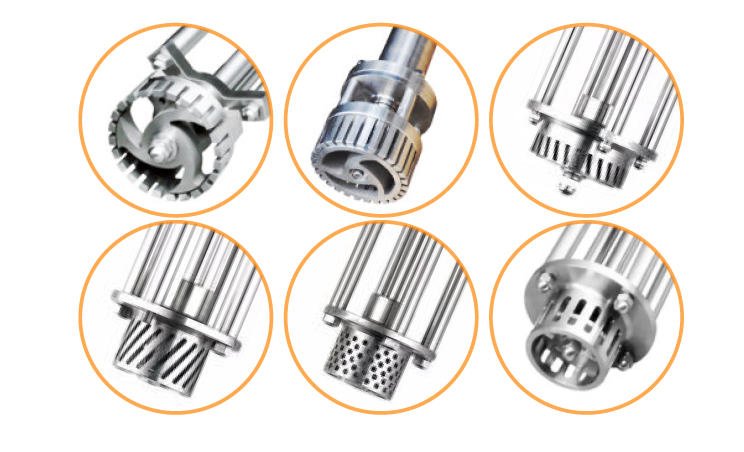

Types of shear head

A large number of experiments have confirmed that different shear heads with different shapes have different mixing effects. According to the actual working conditions, different types of stator heads can be selected to meet the needs of different processes:

• Mesh shear head: it is suitable for mixing low-viscosity liquid with the highest shear rate, and is most suitable for the preparation of emulsion and the crushing and dissolving process of small particles in liquid.

• Long hole shear head: suitable for rapid crushing of medium solid particles and mixing of medium viscosity liquid. long hole provides the maximum area of good circulation for surface shear.

• Round hole shear head: suitable for general mixing or crushing of large particles. the original hole in the stator head provides the best circulation of all the stator and is suitable for handling materials with higher viscosity.

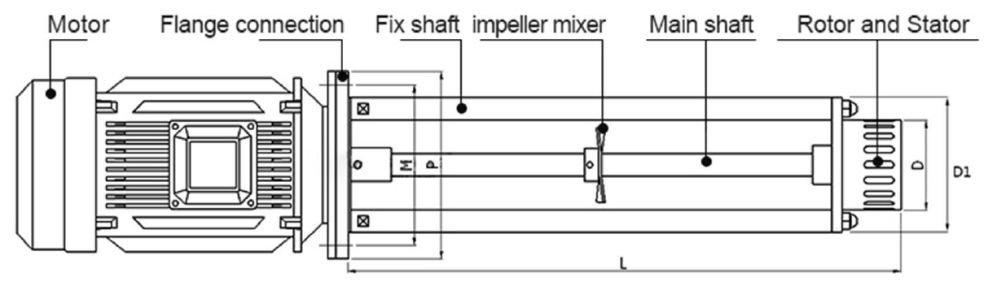

Specification for the high shear batch homogenizer

The following sheet show our standard size of high shear batch homogenizer, It could also be customized according to your tank size. According to diferent working condition, like viscosity, power etc

Model	Power(KW)	Speed (RPM)	Process Capacity(L)	D	D1	P	L
HSBM90	1.5	2900	5-50	80	140	200	355
HSBM100	2.2	2900	50-100	88	145	200	650
HSBM120	4	2900	100-300	120	180	250	750
HSBM140	7.5	2900	200-800	140	210	300	900
HSBM160	11	2900	300-1000	160	230	350	1050
HSBM180	18.5	2900	500-1500	180	260	350	1200
HSBM200	22	2900	800-2000	200	270	350	1200
HSBM220	30	1450	1000-3000	240	320	400	1355
HSBM240	37	1450	1500-5000	260	340	400	1395
