Pharma Grade Colloid Mill
We provide a wide range of pumps & homogenizers
Pharma Grade Colloid Mills
Product Details:
- Product Type: Pharma Grade Colloid Mill
- General Use: Pharma industry
- Material: Stainless Steel
- Type: Feed Grinding Machine
- Fineness: Micro grade
- Automatic : No
- Power： Up to 110kw
Introduction to Pharma Grade Colloid Mills
What Is a Pharma Grade Colloid Mill?
A Pharma Grade Colloid Mill is not merely a piece of machinery—it is the linchpin of modern pharmaceutical formulation. Designed for ultra-fine grinding, emulsification, and homogenization, this equipment ensures that active ingredients and excipients are dispersed with remarkable uniformity.
At its core, it transforms coarse suspensions into stable, finely milled products. The result is a silky, consistent texture that meets the stringent expectations of pharmaceutical standards. No clumping. No separation. Just precision.
Why Precision Matters in Pharmaceutical Processing
In pharmaceuticals, precision is not optional—it is existential. Even minute deviations in particle size can alter bioavailability, stability, and efficacy.
A poorly processed batch can lead to inconsistent dosing or reduced therapeutic performance. Worse still, it may fail regulatory scrutiny. That’s where the Pharma Grade Colloid Mill steps in, offering repeatability that borders on exactitude.
Key Features of a Pharma Grade Colloid Mill
Hygienic Design and GMP Compliance
Pharmaceutical environments demand uncompromising hygiene. A Pharma Grade Colloid Mill is engineered with smooth surfaces, minimal crevices, and sanitary connections.
These design elements prevent contamination and facilitate compliance with Good Manufacturing Practices (GMP). Cleanliness isn’t just maintained—it is engineered into every component.
Material Selection and Corrosion Resistance
The materials used in construction are carefully chosen. Typically, high-grade stainless steel such as 316L is employed for its corrosion resistance and inertness.
This ensures that the product remains uncontaminated, even when processing chemically sensitive formulations. Durability meets purity.
The Solution for the Micro Fineness Milling

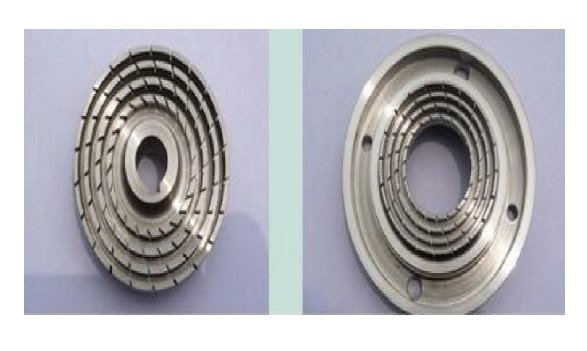

The first stage consists of three levels of serrated protrusions and grooves with increasing fineness. The stator can be adjusted without limitation to the
desired distance from the rotor. Under enhanced fluid turbulence, the grooves can change direction at each stage.

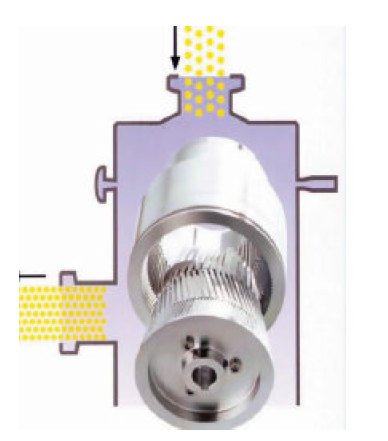

The second stage consists of a stator and a rotor. The design of the dispersing head also well meets the needs of substances with different viscosities and particle sizes. The difference between the stator and rotor (emulsifying head) of linear machines and the working head design of batch machines is mainly due to the requirements of conveying performance. In particular, it is important to note that the difference between coarse, medium, fine, and other working head types is not only the arrangement of the rotor teeth, but also, and very importantly, the different geometric characteristics of the different working heads.
The NWGMSD2000 series features high linear speeds and extremely small shear gaps, resulting in intense friction as material passes through, a phenomenon commonly known as wet grinding. The stator and rotor are conical in shape, with three levels of progressively finer serrated protrusions and grooves. The stator can be adjusted without limitation to the desired distance from the rotor.Under enhanced fluid turbulence, the grooves can change direction at each level. High-quality surface polishing and structural materials meet the diverse requirements of various industries.
| Model | Flow(L/H) | Speed(RPM) | Linear Velocity (m/s) | Power(KW) | Inlet & Outlet (mm) |
|---|---|---|---|---|---|
| NWGMSD2000/4 | 300 | 14,000 | 44 | 4 | DN25/DN15 |
| NWGMSD 2000/5 | 1000 | 10,500 | 44 | 11 | DN40/DN32 |
| NWGMSD 2000/10 | 3000 | 7,200 | 44 | 22 | DN80/DN65 |
| NWGMSD 2000/20 | 8000 | 4,900 | 44 | 45 | DN80/DN65 |
| NWGMSD 2000/30 | 20000 | 2,850 | 44 | 90 | DN150/DN125 |
| NWGMSD 2000/50 | 60000 | 1,100 | 44 | 110 | DN200/DN150 |
