Vertical Colloid Mill
We provide a wide range of homogenizers

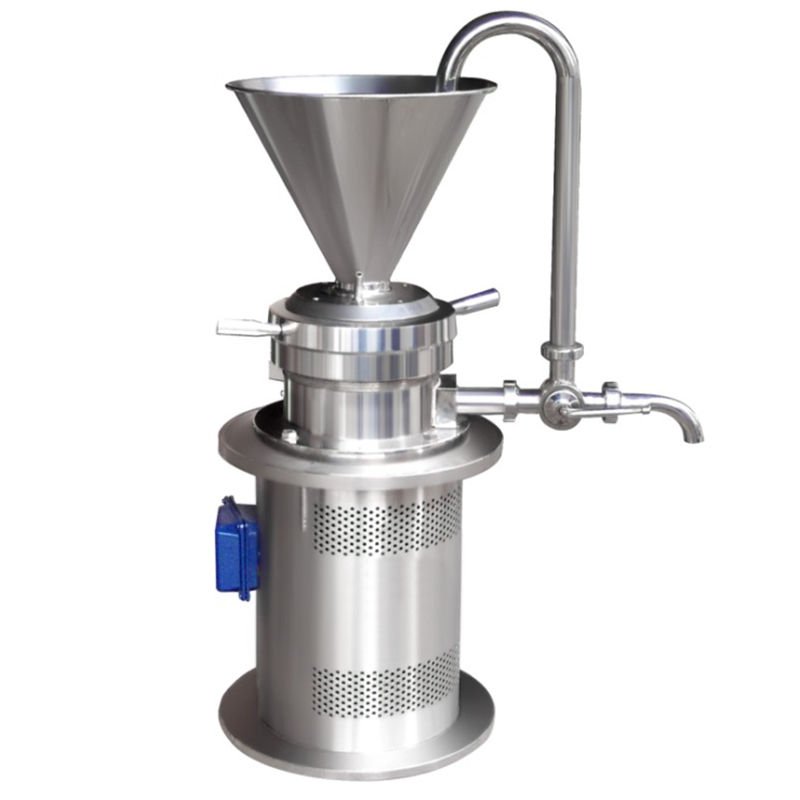

Vertical Colloid Mill
Product Details:
- Product Type: Colloid Mill
- General Use: pharma industry
- Material: Stainless Steel
- Type: Feed Grinding Machine
- Computerized: No
- Automatic : No
- Power： Up to 75kw
Product Description
Vertical Colloid Mill we offer is utilized to lessen the particle size of a solid. This is needed to reduce the droplet size in several emulsions. This is needed to increase the stability of emulsions and suspensions. This is effectively needed to reduce the particle size of objects in suspensions. Vertical Colloid Mill is functional as a rotor-stator mixer suited for the manufacturing of dispersions and emulsions. This is apt for homogenization of liquid and viscous products. This is accessible for grinding operations.
The Vertical colloid mill machine is widely applied in the industrial productions of food (Cocoa paste, Peanut butter, sesame jam, soy milk, dairy products, soft drinks, etc.), medicine (syrups, nutrition liquid, Chinese herb extracts, poultices etc.), daily chemical products (tooth paste, cosmetic, washing agent, etc.), chemical industry products (pigment, dye, dope, lubricant, petroleum activator, etc.) and the flotation and emulsification of the explosives.
Vertical Colloid Mill Working Principle and Operation
Working Principal :
The Product is charged from the hopper, which enters the milling Chambers which consists of a stator rotor. At high speed, the particles of the products are crushed and get reduced to as low as 40 microns.Drive mechanism is an electric motor with couple shaft. Special 3 way clock is provided to recirculate the product to get final & finest output.
Models Available :
Models are available in S.S 316 / S.S 304 Quality.
Colloid Mill Specification and Features
- The unique vertically oriented design of this machine ensures gravity assisted into the milling chamber.
- The AC motor installed within the machine delivers variable output speeds ranging between 3000 to 3600 revolutions per minute.
- Adjustable design that allows you to change the gap between the rotor and stator to control fineness.
- Robust construction with excellent corrosion resistance.
- Serves the dual purpose of grinding and mixing.
- The components can be easily disassembled to ensure efficient cleaning that helps in the prevention of cross-contamination.
- Product fed into the operating area by means of specially designed feeding device is subjected to high shearing, cutting and rubbing forces between stator and rotor.
- Due to conical arrangement and the centrifugal effect of the rotor rotating at a high speed (2800 RPM), the material is forced in to the next tooth stage.
- The tooth vibrations which subject the particles with high degree of forces.
- Intence whirling multiples the grinding and mixing effect.
- Due to the slightly deviating tapeirng of the milling surface of the stator and rotor, the angular gap becomes narrower towards the discharge section.
- The processed material continuously leave the mill through the drain pipe, if required it can be re-circulated.
How to select the right vertical colloid mill for your application
Choosing the right Colloid Mill for your applications is an important step for your industry. Some of the common factors that need to keep in mind while selecting the right machine are:
- Determine your industrial needs: Consider factors such as materials you are going to process, daily output capacity, size, and other features.
- Compatibility: Go for machine models that are suitable to process various types of materials within industrial facilities such as chemicals, food, pharmaceuticals, and cosmetics.
- Particle Size Control: Consider mills with adjustable gaps between the rotor and stator to change the fineness of the emulsion.
- Speed and Power: Select a machine with a powerful motor that delivers high RPM to ensure efficient shearing and grinding.
| Model | Output(kg/h) | Fineness (micron) | Power(kw) | Weight(kg) | Dimension(mm) | Inlet dia(mm) | Hopper size(L) |
|---|---|---|---|---|---|---|---|
| 50 | 10-15 | 270-150 | 1.1/1.5 | 50 | 530*260*580 | φ40mm | 3L |
| 80 | 30-70 | 270-150 | 4 | 150 | 640*410*900 | φ50mm | 8L |
| 110 | 150-200 | 150-106 | 7.5 | 175 | 700*430*980 | φ50mm | 8L |
| 130 | 300-500 | 150-106 | 15 | 285 | 830*440*1100 | φ90mm | 10L |
| 180 | 800-1000 | 150-106 | 22 | 340 | 830*490*1100 | φ90mm | 10L |
| 240 | 1500-2000 | 150-106 | 45 | 1300 | 1320*600*1280 | φ120mm | 20L |
| 300 | 3000-4000 | 250-106 | 75 | 1600 | 1500*800*1120 | φ120mm | 20L |
